Introduction

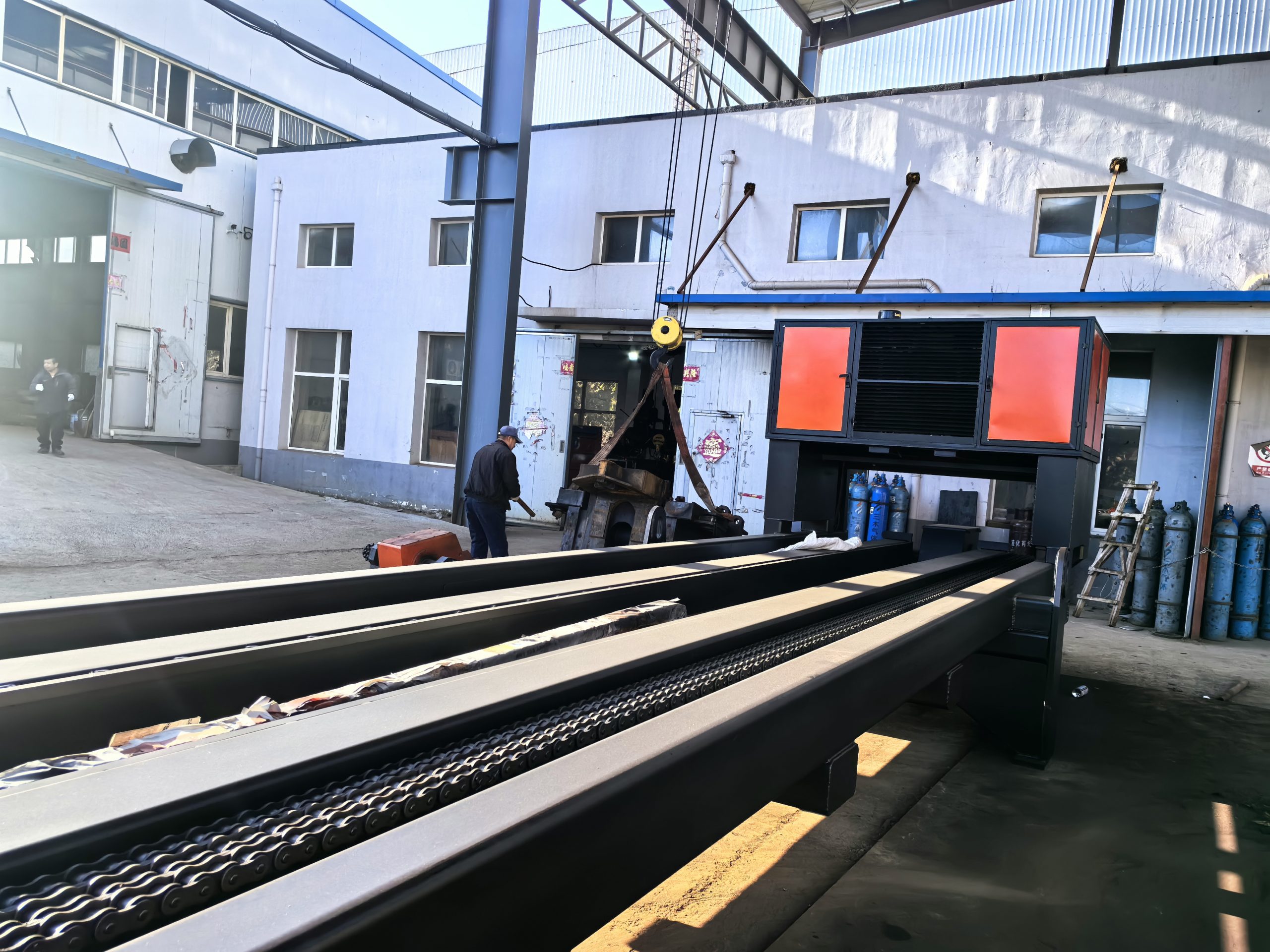

As an indispensable equipment in modern industrial production, the bundle extractor plays an important role in the maintenance and repair of equipment such as heat exchangers, boilers, and reactors. An efficient, safe, and reliable bundle extractor requires the perfect cooperation of various components. This article will deeply analyze the key components of the bundle extractor, from the clamping device, the driving device to the safety system, to explain their functions, design principles, and development trends.
I. Clamping device
The clamping device is one of the core components of the bundle extractor, whose function is to firmly clamp the tube bundle to prevent it from slipping or deforming during the disassembly process and ensure that the tube bundle is in a controlled state throughout the extraction process.
- Types: Common types of clamping devices include:
- Hydraulic clamping device: Uses a hydraulic system to provide a powerful clamping force and is suitable for the disassembly of large tube bundles.
- Pneumatic clamping device: Uses compressed air to provide a clamping force and is suitable for the disassembly of small tube bundles.
- Mechanical clamping device: Uses a screw or cam and other mechanical structures to provide a clamping force. It has a simple structure and low cost, but the clamping force is limited.
- Design principles:
- Stability: The clamping device must be able to stably clamp the tube bundle to prevent it from slipping.
- Strength: The clamping device must be able to withstand the weight of the tube bundle and the force generated during the disassembly process.
- Sealing: The hydraulic or pneumatic clamping device must ensure good sealing to prevent oil or gas leakage.
- Easy operation: The operation of the clamping device should be convenient and quick to facilitate the adjustment of the clamping force.
- Development trends: With the progress of technology, the development trends of the clamping device include:
- Intelligence: Using sensors and control systems to achieve automatic clamping and release to improve efficiency and safety.
- Multifunction: Designing more flexible and diverse clamping devices to adapt to different types and sizes of tube bundles.
II. Driving device
The driving device is the core component that provides power to the bundle extractor, and its type and power depend on the size and weight of the tube bundle.
- Types: Common types of driving devices include:
- Hydraulic driving device: Uses a hydraulic system to provide powerful power and is suitable for the disassembly of large tube bundles.
- Pneumatic driving device: Uses compressed air to provide power and is suitable for the disassembly of small tube bundles.
- Electric driving device: Uses a motor to provide power, is easy to operate, and is suitable for the disassembly of medium and small tube bundles.
- Design principles:
- Power matching: The power of the driving device must match the weight and size of the tube bundle to ensure the successful completion of the disassembly task.
- Reliability: The driving device must have good reliability to avoid failures that affect normal operation.
- Efficiency: The driving device must have high efficiency to reduce energy consumption and operating costs.
- Noise control: The driving device should minimize noise to reduce the impact on the environment.
- Development trends:
- High efficiency: Developing more efficient driving devices to improve disassembly efficiency and reduce energy consumption.
- Silence: By optimizing the design and material selection, reduce noise pollution and improve the working environment.
III. Safety system
The safety system is an important part to ensure the safety of operators and equipment.
- Safety devices: Common safety devices include:
- Emergency stop device: In an emergency, the equipment can be quickly stopped to avoid accidents.
- Overload protection device: When the equipment is overloaded, it can be stopped in time to protect the equipment and the safety of operators.
- Limit device: Limits the range of motion of the equipment to prevent the equipment from going beyond the limit or hitting other objects.
- Pressure relief valve: When the pressure in the hydraulic or pneumatic system is too high, it can automatically relieve the pressure to prevent damage to the system.
- Safety design principles:
- Multiple protection: Design multiple safety devices to improve safety.
- Fail-safe design: Even if a failure occurs, the equipment must be in a safe state.
- Easy to operate: The operation of the safety device should be simple and convenient to facilitate the operation of the operator in an emergency.
- Development trends:
- Intelligence: Using sensors and control systems for real-time monitoring and timely warning to improve safety.
- Humanization: Designing more humanized safety devices to reduce the difficulty of operation and improve usability.
IV. Summary
The design and manufacturing technology of the key components of the bundle extractor are increasingly advanced, and are constantly developing in a more efficient, safer, and more reliable direction. In the future, with the continuous development of technology, the bundle extractor will be more intelligent and automated, bringing greater benefits to industrial production.
Note: The above article is for reference only, and the actual application still needs to be selected and designed according to specific circumstances.
Recommendations:
- Understand the characteristics of different types of bundle extractors and choose the one that suits you best.
- Strictly follow the operating procedures and pay attention to safety protection.
- Regularly check and maintain the equipment to ensure its safe and reliable operation.
