Inside Bundle Cleaner

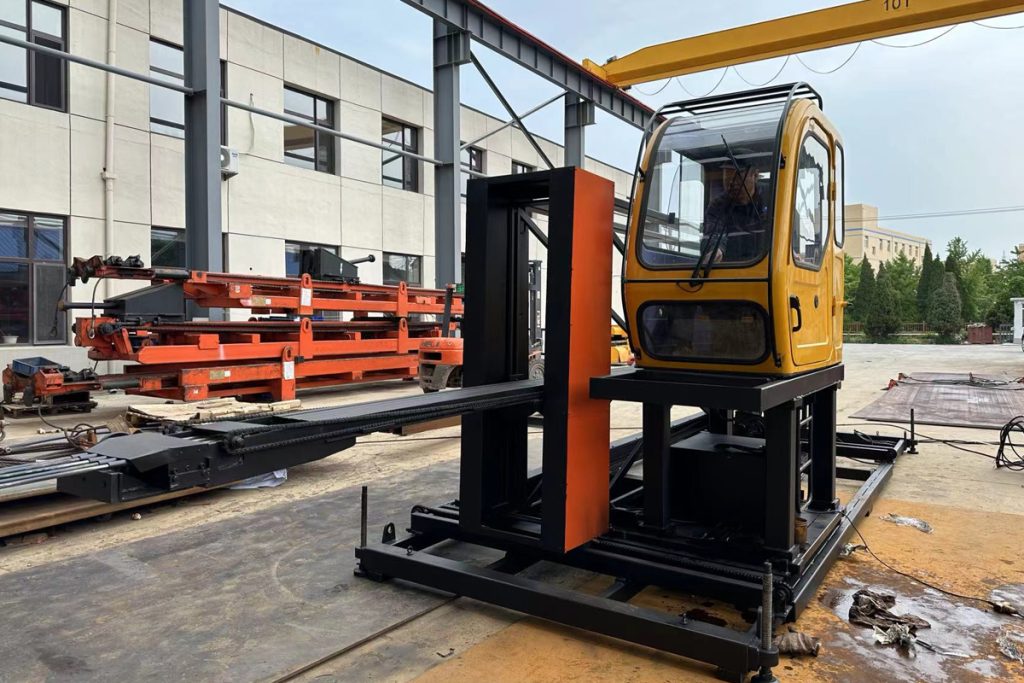

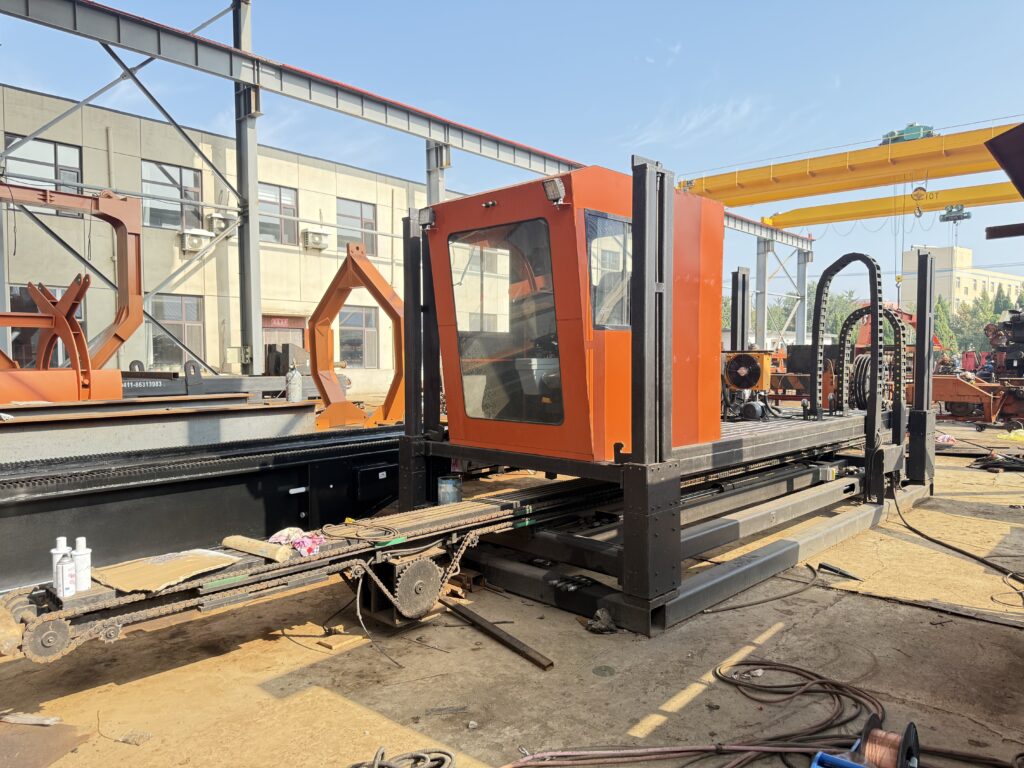

Qingwei Industrial Equipment Co., Ltd.’s inside bundle cleaner is an efficient, reliable, and safe bundle cleaner device designed to handle even the dirtiest bundles, significantly enhancing operational efficiency in the wash bay.

Category: Bundle cleaner

PRODUCT CATEGORIES

DESCRIPTION

CHARACTERISTICS

• The inside bundle cleaner is an exceptionally efficient piece of equipment, with the nozzle bar easily operated from the cabin to deliver high-quality cleaning results during busy turnarounds.
• Made from durable components, highly reliable, ensuring its high quality and dependability.
• The cabin provides complete operational control, including an optional hydraulic roller to enhance operator safety and convenience.

Power supply
• The power supply of the machine is three-phase power, voltage: 380V(440V)±10 frequency:50Hz(60hz)(the power supply is determined according to the power supply voltage of the local country)
• The diesel power bundle extractor uses a diesel engine as the power source and can choose two brands: Cummins or Weichai.
• The diesel power bundle extractor can be remotely started with just one click button, making it easy and fast to operate.

Outside Bundle Cleaner Technical specifications :

Technical specifications

Max. cabin weight	1,700 kg (3,748 lb)
Max. cabin dimensions	345.0 x 130.0 x 205.0 cm
Additional height optional A/C roof unit	22.5 cm
Max. cabin tilt for visibility	10 degrees

Base frame weight and dimensions

Frame weight (standard)	2,800 kg (6,173 lb)
Dimensions operating mode (standard)	1215.0 x 252.5 x 343.0 cm
Dimensions operating mode (with optional hydraulic turnable tower)	1215.0 x 252.5 x 373.0 cm
Dimensions operating mode (with optional manual turnable tower)	1215.0 x 252.5 x 361.0 cm
Dimension transport mode (all models)	620.0 x 247.0 x 220.0 cm
Dimensions container transport mode (nozzle block disassembled) (all models)	620.0 x 225.5 x 220.0 cm
